Full description
Key Strengths:
- Total Automation: Automatic glass size detection and gas management.
- Triple Glass Alignment: Support system eliminates the risk of misalignment.
- Gas Injection Quality: Uniform gas filling for superior thermal performance.
- Energy Efficiency: Reduced pneumatic consumption and lower breakage risks.
- Remote Assistance: Quick support to minimize downtime.

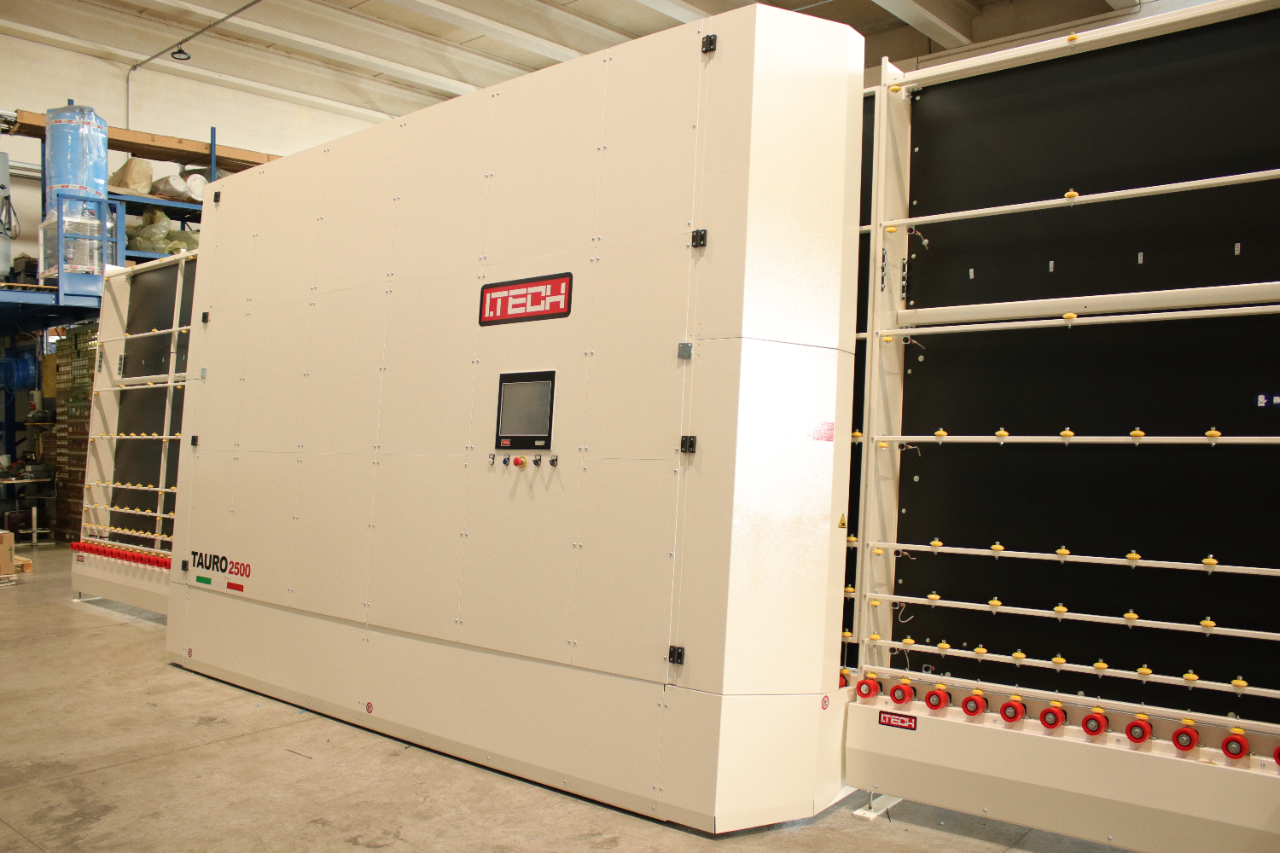

The TAURO gas injection press is the ideal solution for glassworks demanding productivity and efficiency without compromise. Key features include:
- Structure and Capacity:
- Suitable for glass up to 3000 mm in length (extendable to 3500 mm with optional features).
- Supports thicknesses up to 60 mm (extendable to 80 mm upon request).

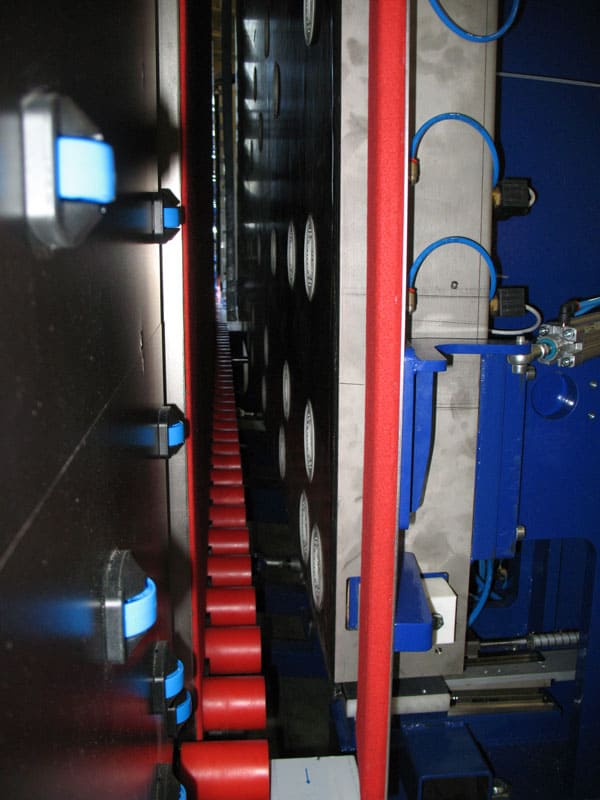

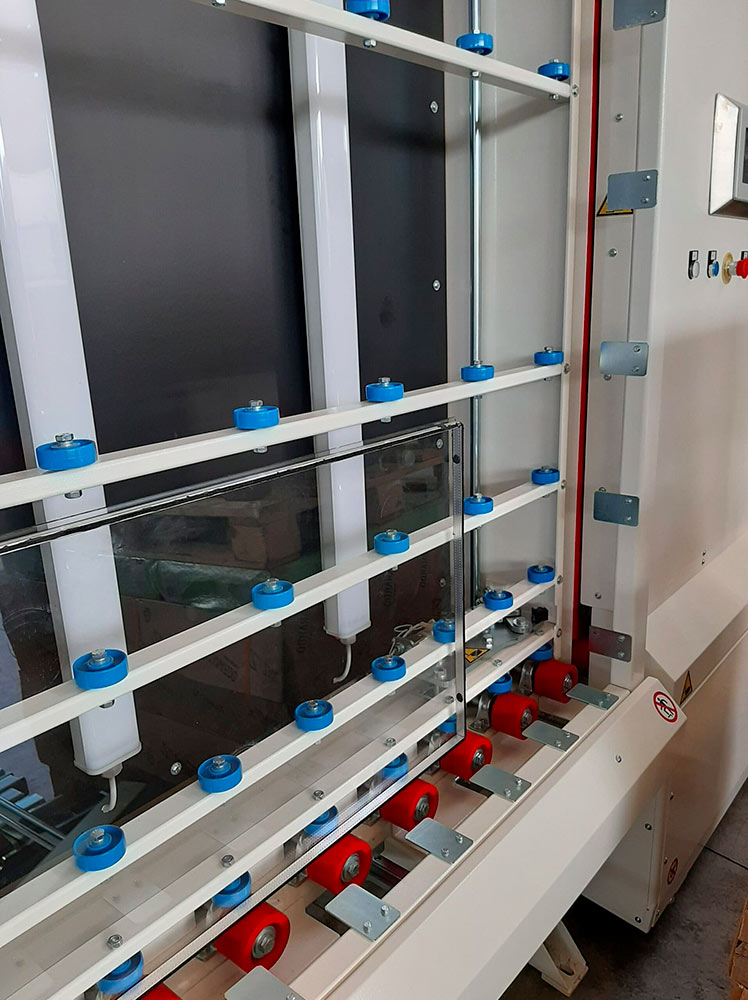

- Glass transport via polyurethane-coated friction rollers with tank-track mechanical drive.
- Pressing and Gas Injection System:
- Sensors for automatic detection of glass dimensions and thickness.
- Gas injection system with a nebulizing tray, ensuring uniform filling above 90%.
- Vacuum generation with a recovery tank to reduce breakage risks and optimize energy consumption.
- High Productivity:
- Transfer speed up to 28 meters per minute.
- Repeatable process for triple or quadruple glazing.
- Automation and Software:
- Full process control via PLC, including gas “recipe” management.
- Manual operation possible through a touchscreen in case of failures.
- Energy Efficiency and Safety:
- Reduced pneumatic consumption (-70%) thanks to the vacuum pump system.
- Low-voltage controls and protections compliant with European standards.
- CE certification ensures safety and quality.
Available Options:
- Production Optimization:
- Structural glass creation with electromechanical positioners.
- Two-phase pressing cycle for lengths exceeding standard sizes.
- Customized labels with logo and product specifications.
- Structural Customization:
- Foldable, angular, or additional racks to integrate with various production lines.
- “Half-sheet” processing for glass up to 3210 mm in a single cycle.
- Ease of Use and Maintenance:
- LED lighting for quality control at entry and exit.
- Special polyurethane support wheels to reduce maintenance requirements.
Technical Data
Technical Characteristics
Gallery
Video
