Key Strengths:
| Minimum Glass Size: | L400 mm x H200 mm |
| Maximum Glass Size: | L3000 mm x H1600 mm/H2000 mm/H2500 mm Serie “JUMBO” L5000 mm x H2500 mm/H3210 mm (variable length upon request) |
| Minimum glass thickness: | 3 mm |
| Maximum Glass Thickness: | Series “E” 12mm – Series “S” 20mm – Series “L” 50 mm |

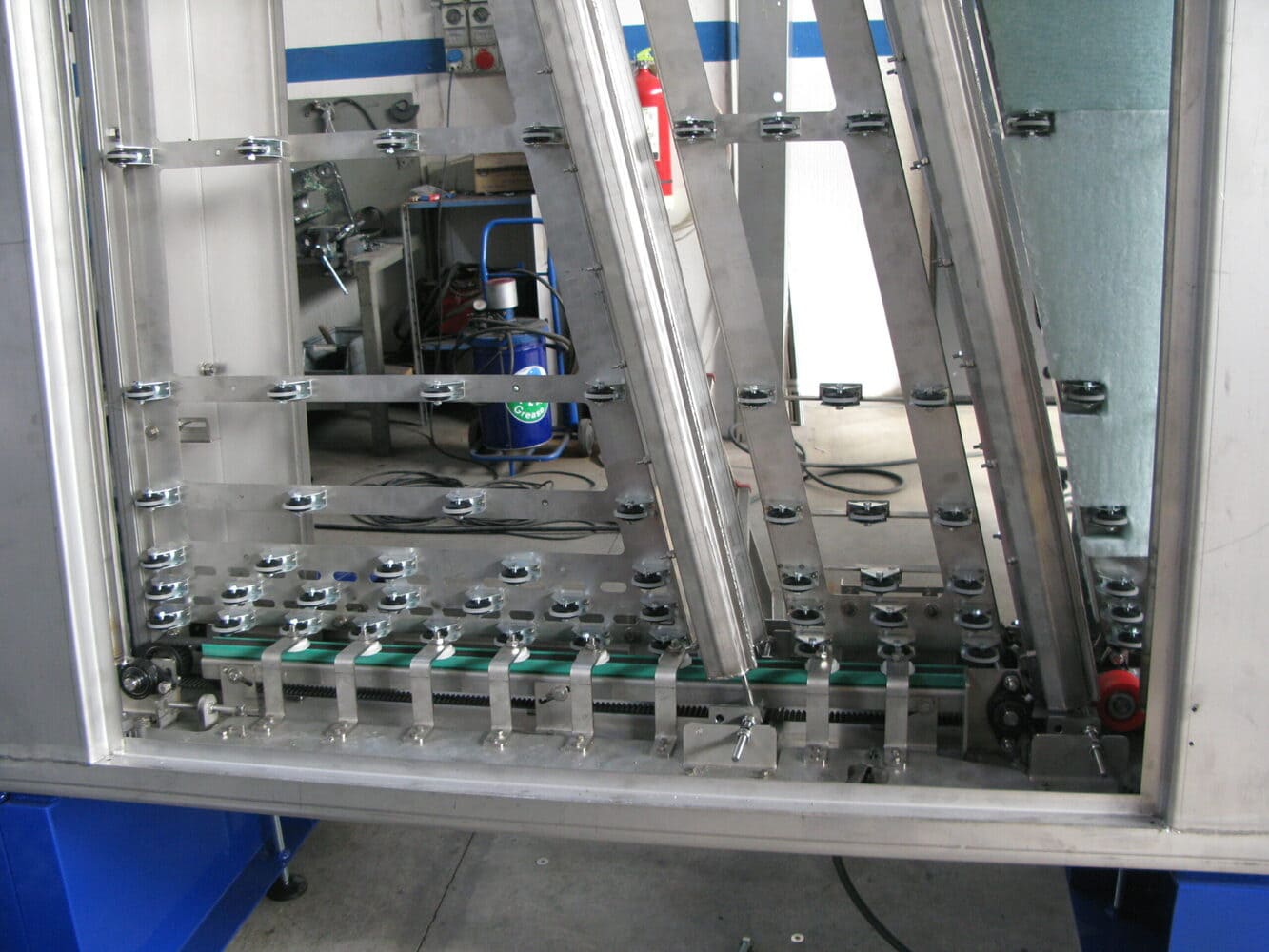

| Transportation System: | rubber/polyurethane rollers |
| Transportation speed: | 10 mt/min max |

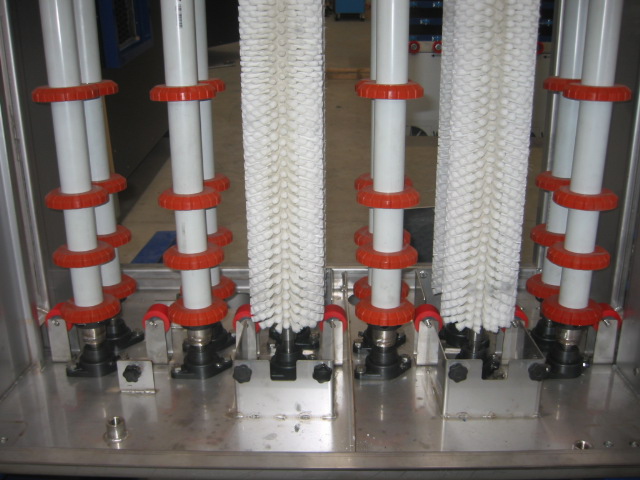

| Brushes: | 4/6 brushes Ø120-150-170 for low emission, with independent motors |
| Tanks Pumps: | N°2/3 independent tanks each with N°1 pump |
| Compressed Air: | 6 bar – 1/2 |
| Blowers: | N°2/4 air blades |
| Fans: | N°1/2 high pressure fan on insulated box |
| Motorization: | N°1 motor for washing section N°1 motor for drying section |
| Filtration System: | N°1 filter for each tank |
| Operator Interface: | touch screen panel with remote connection |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Maximum Load: | 800 Kg |
| Glass Transport Height: | 650 mm (+/-50mm) (height can be adjusted based on requirements) |
Available soon…

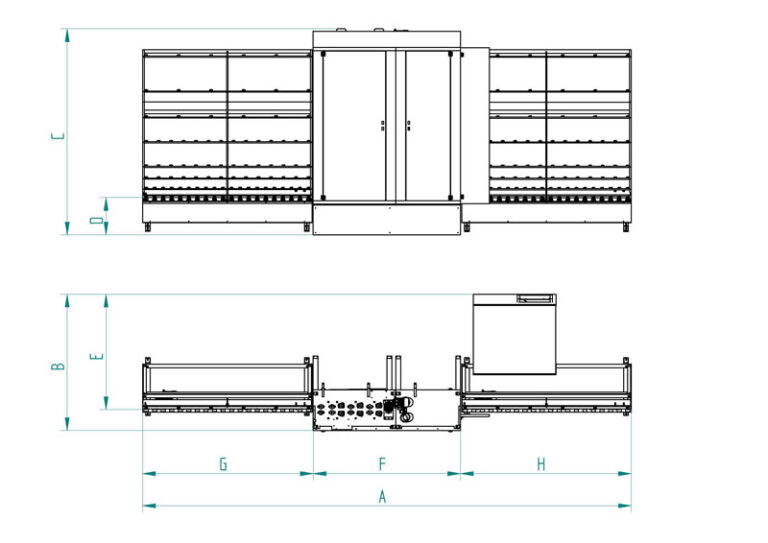

| HEIGHT | A | B | C | D | E | F | G | H |
| H1600 | 8400 | 2380 | 2670 | 600 | 1980 | 2500 | 2950 | 2950 |
| H2000 | 8400 | 2380 | 3070 | 600 | 1980 | 2500 | 2950 | 2950 |
| H2500 | 8400 | 2380 | 3570 | 600 | 1980 | 2500 | 2950 | 2950 |
| H3210 | 10600 | 2580 | 4280 | 600 | 1980 | 3800 | 5000 | 1800 |
Disponibile a breve…
Disponibile a breve…
Fill out the form on the side, we will reply as soon as possible, or contact us by phone.
