Full description

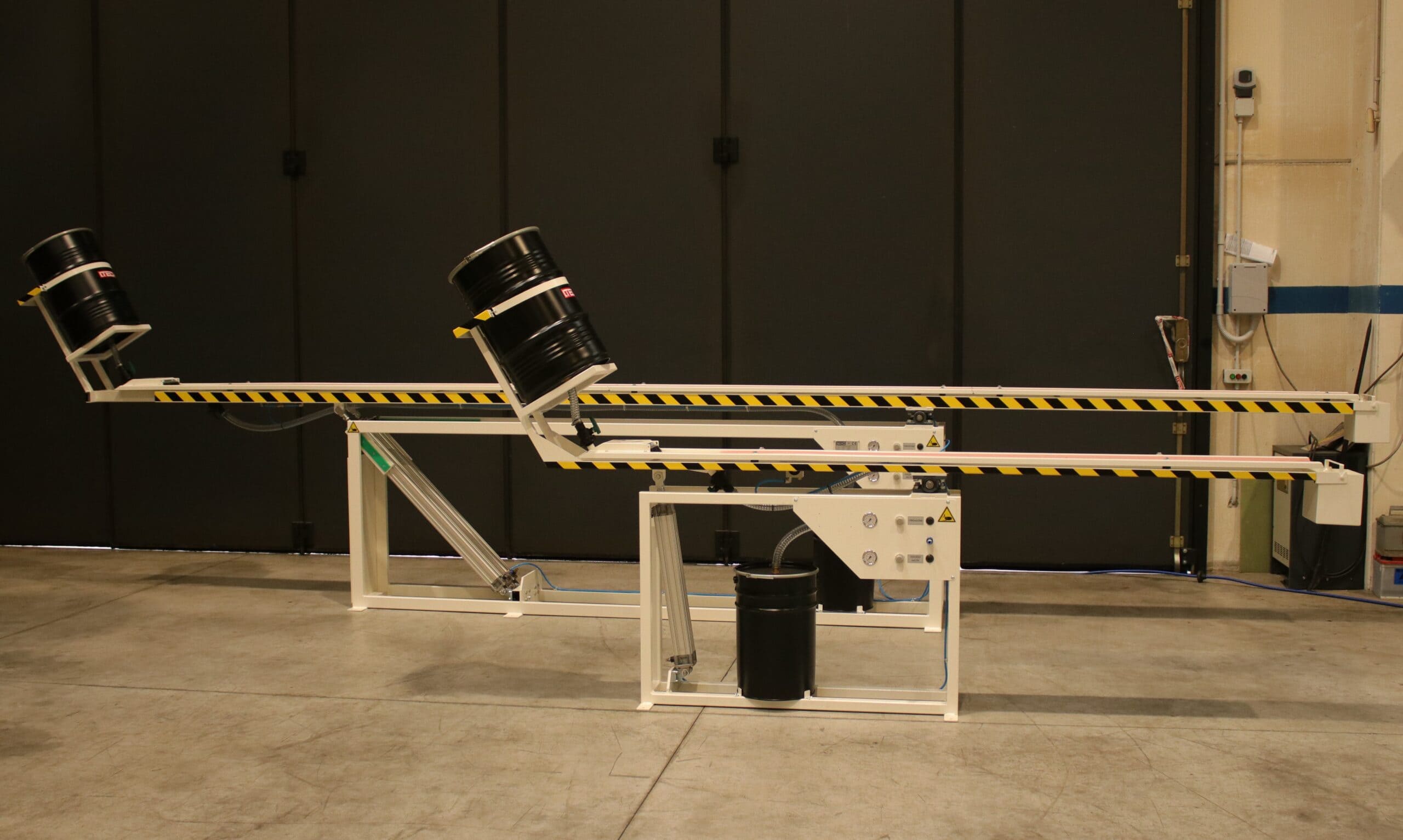

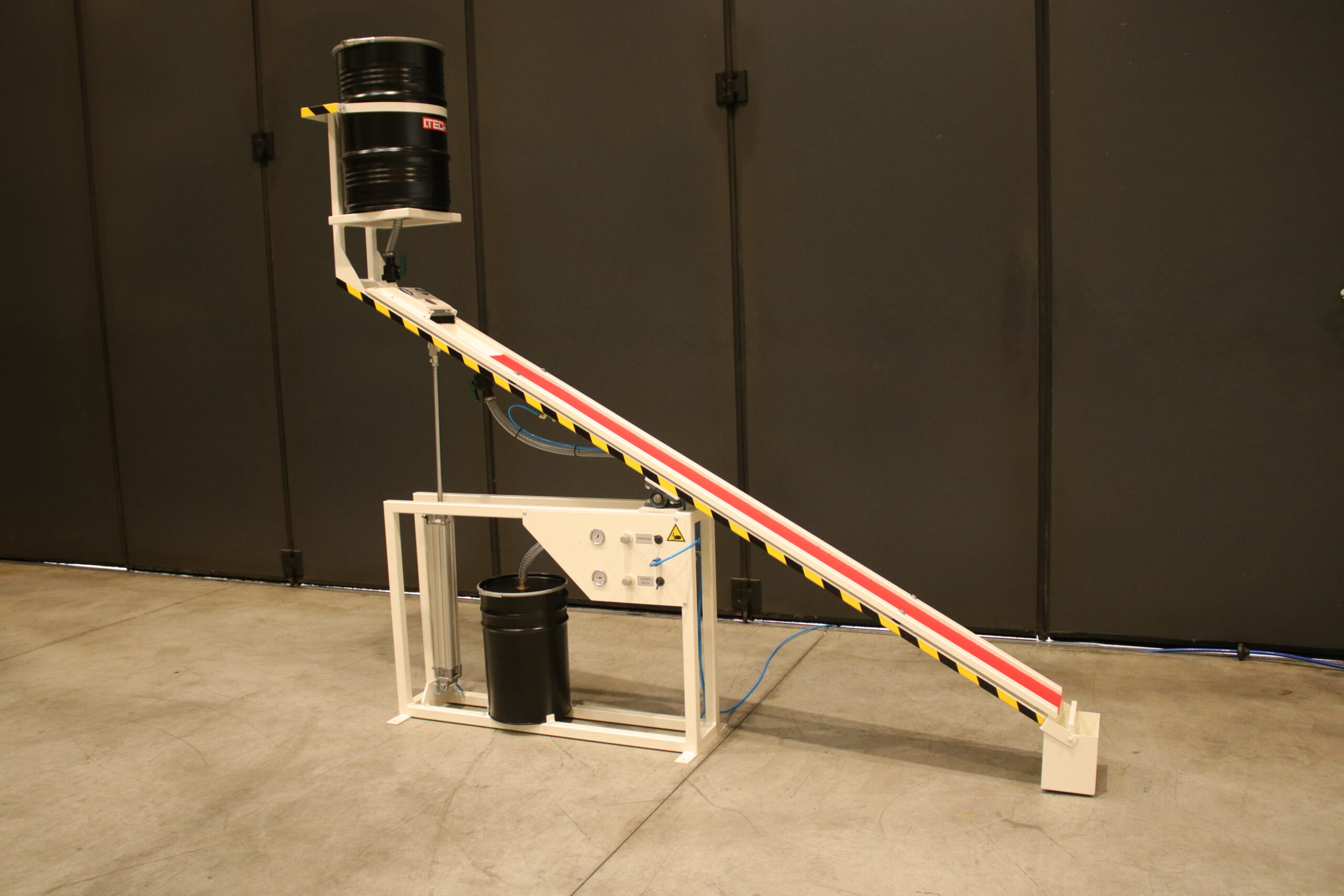

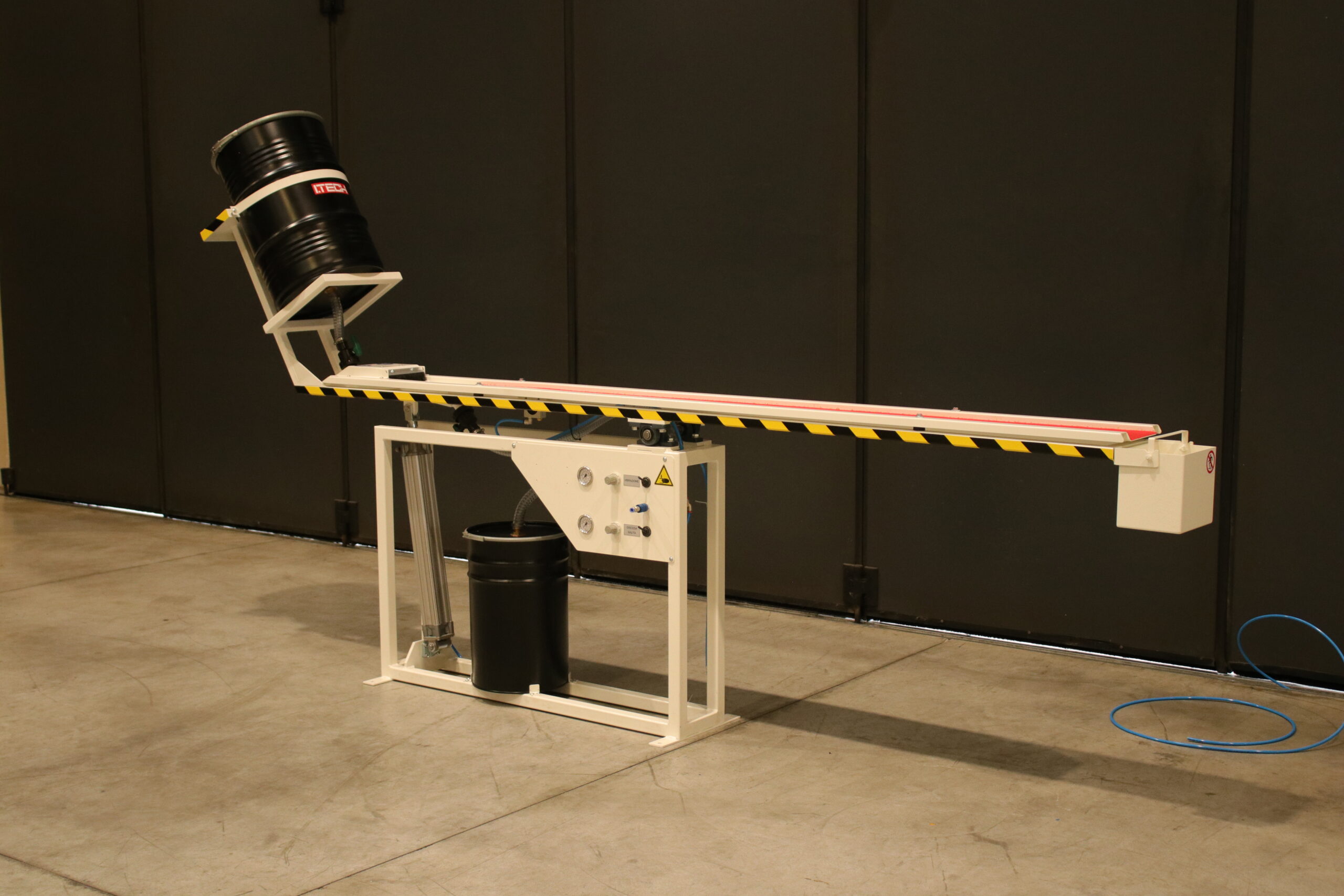

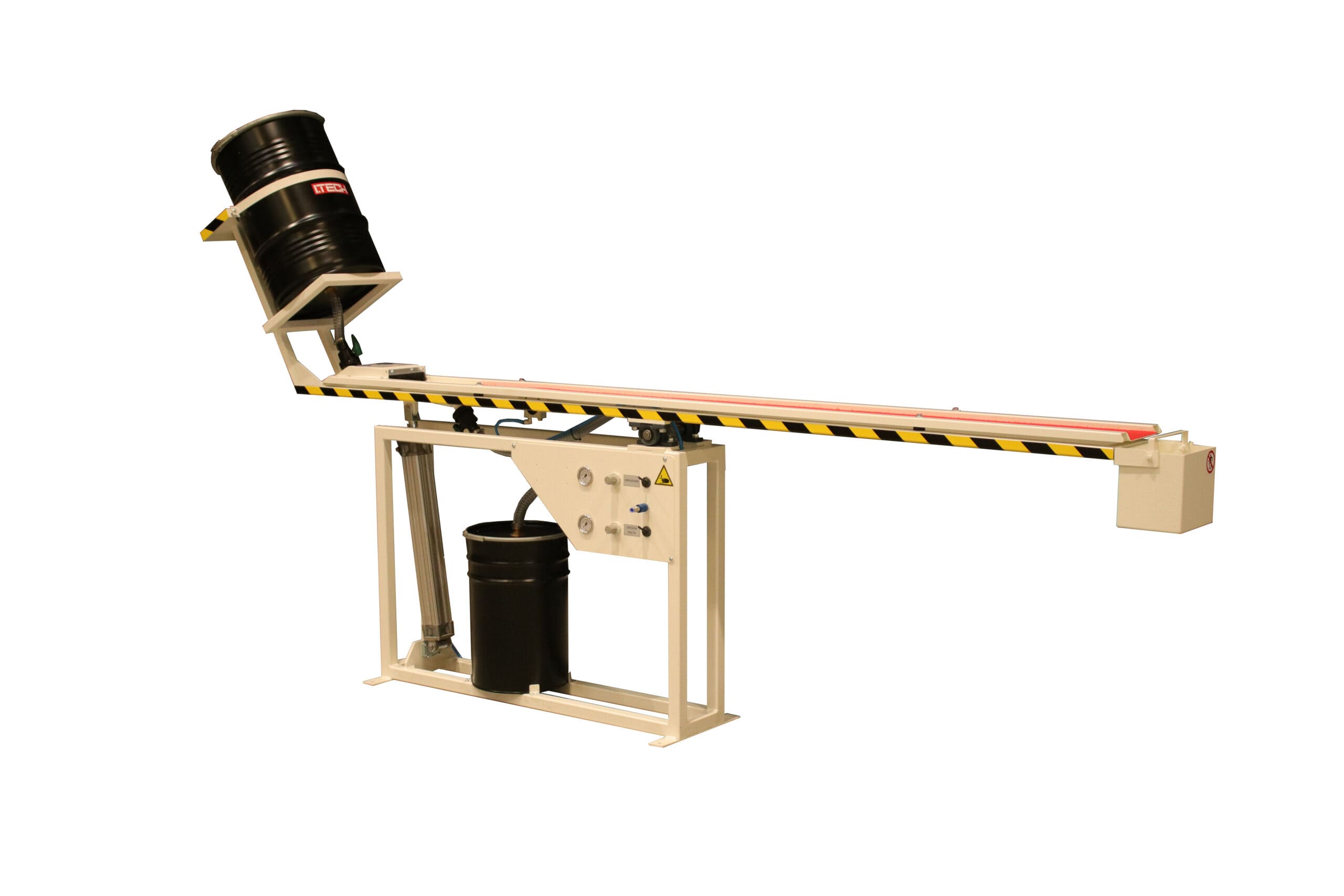

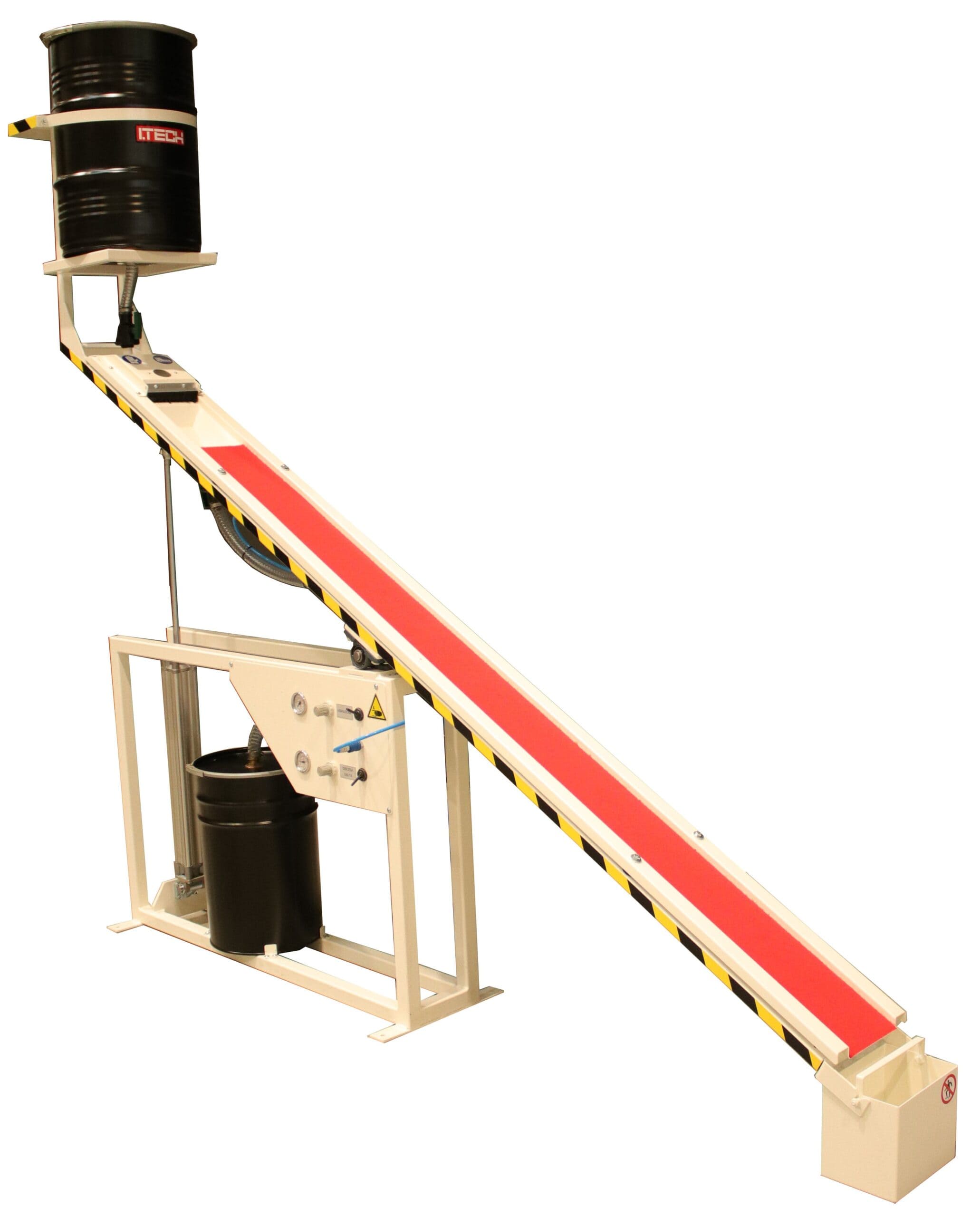

The IT117B-3 Tilting Desiccant Loader combines innovation and practicality for an efficient and safe loading process. Key features include:
- Functional Design:
- 60-liter upper tank with an airtight lid to preserve the hydrophilic properties of the desiccant.
- Suitable for spacer bars up to 2600 mm in length, with an integrated collection tray.
- Tilting Operation:
- Platform adjustable via a piston with a tilt angle of up to 30°, ensuring complete filling of spacer bars.
- Simple controls for direct operation management.
- Loading Efficiency:
- Integrated vibrator to move and deposit desiccant precisely and evenly.
- Double brush strip system to facilitate spacer insertion and minimize desiccant loss.
- Productivity Advantages:
- Improved thermal and acoustic insulation due to optimal use of desiccant.
- Reduced condensation formation and increased structural resistance of the insulated glass unit.
- Additional Features:
- Option to add a heating element to maintain the desiccant’s properties.
- Eliminates the need for ladders or supports to access the tank, enhancing operator safety.
