Full description
Key Strengths:
- Structural durability with stainless-steel interiors.
- High productivity, up to 6 meters per minute.
- Full automation with thickness detection and automatic adjustments.
- Resource Savings: 20% reduction in water and energy consumption.
- Professional cleaning for all types of glass, including Low-E.
- Easy maintenance with integrated remote assistance.

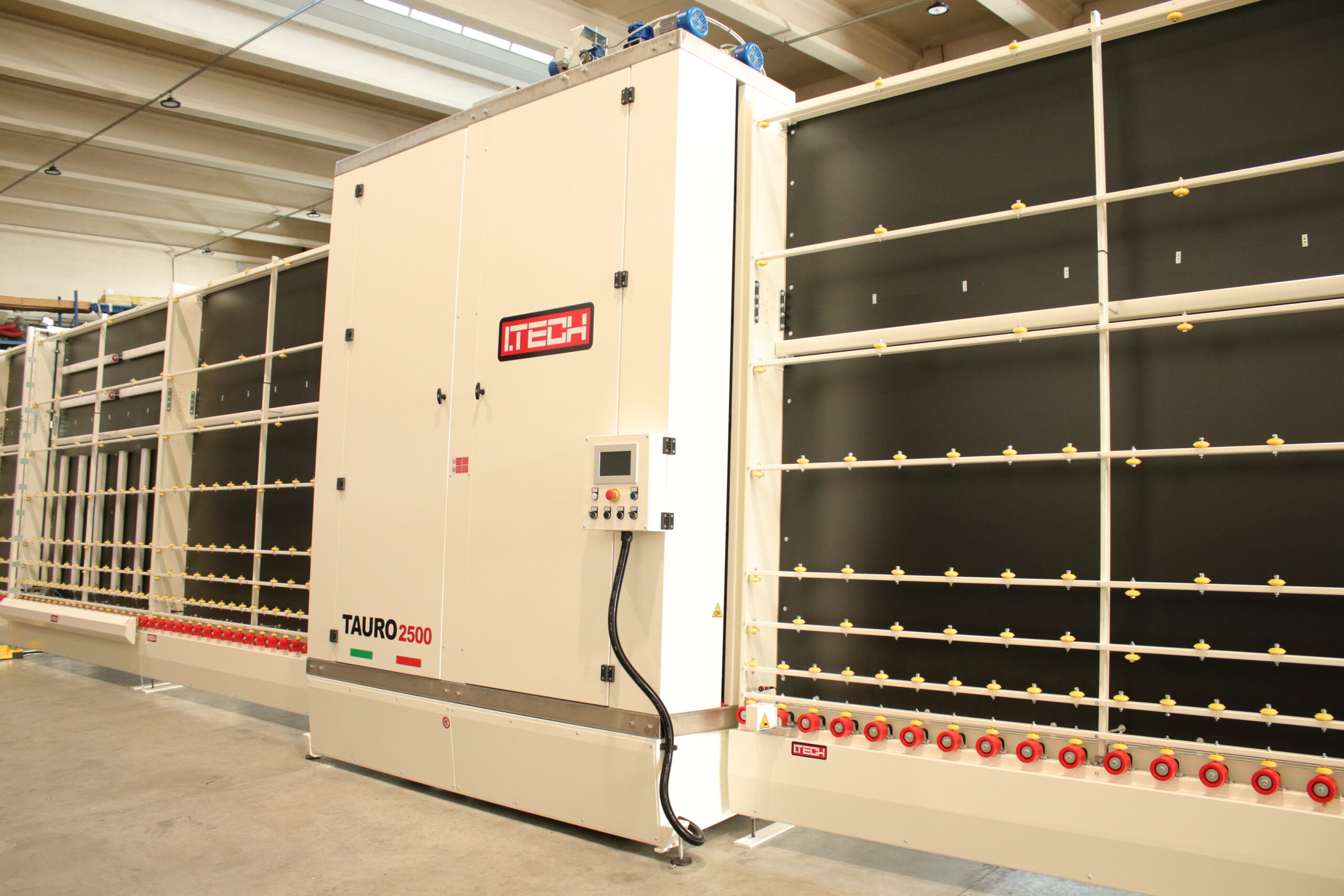

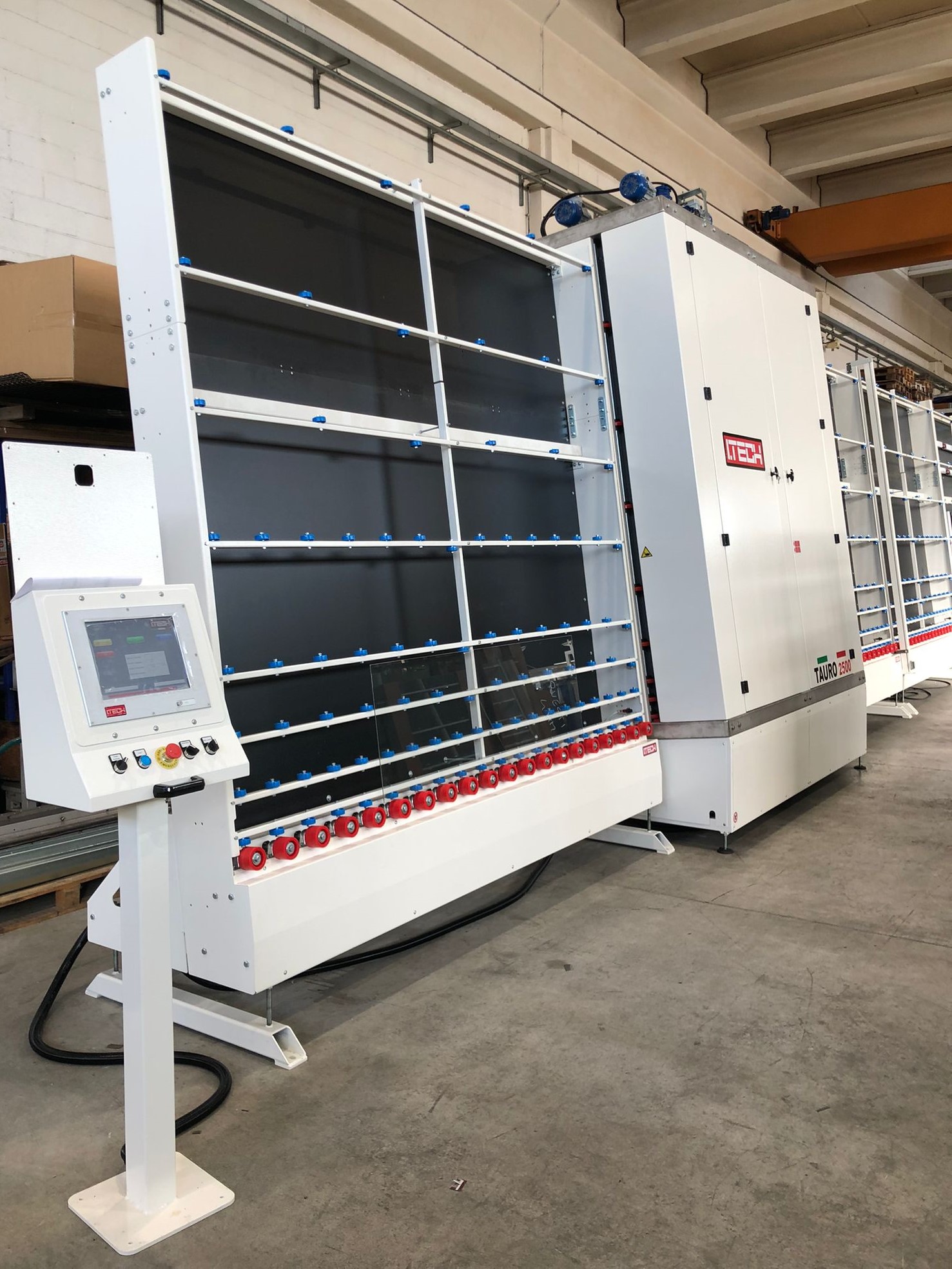

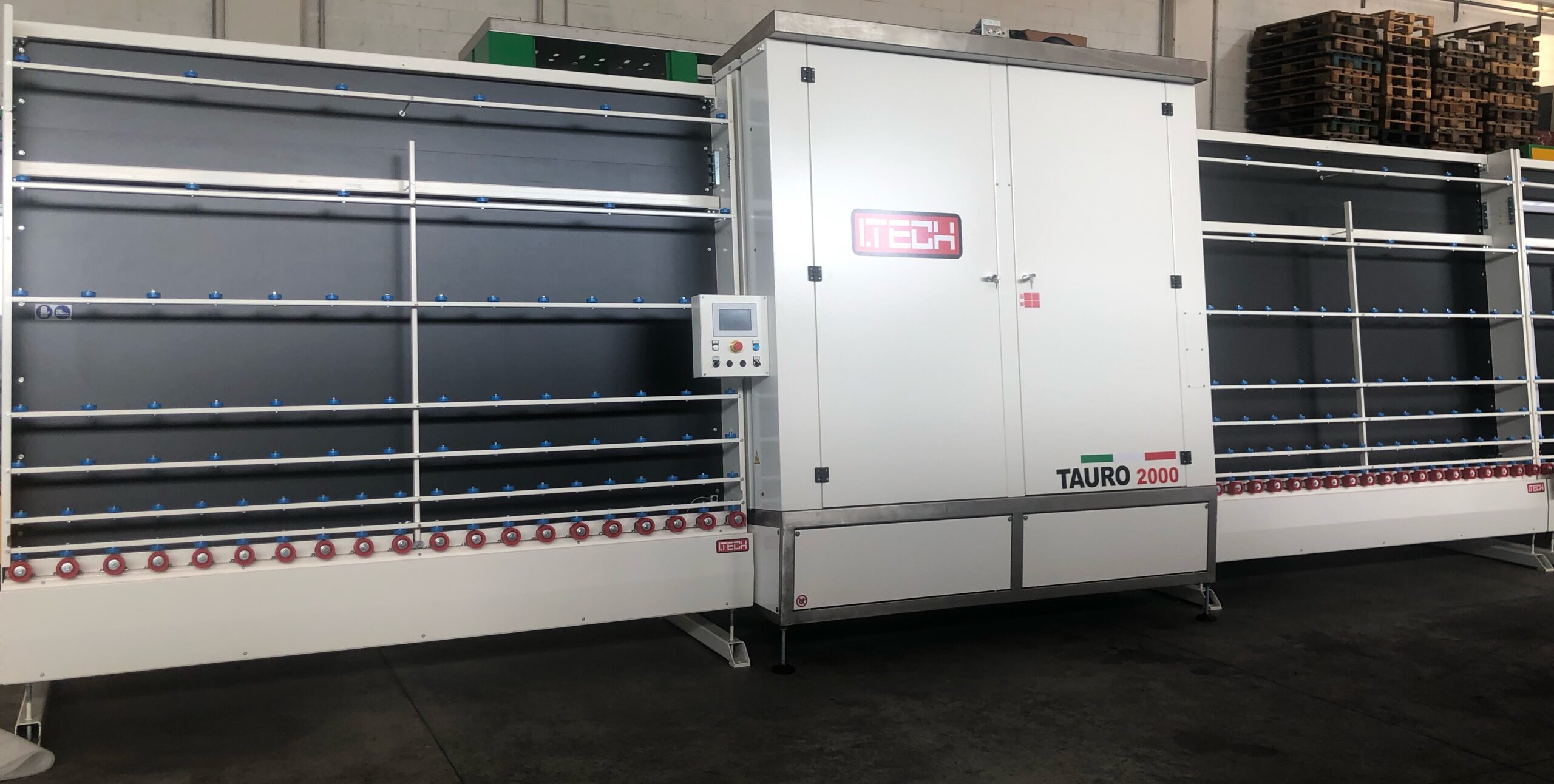

The TAURO vertical washing machine represents a technological breakthrough in flat glass washing. Designed for maximum efficiency and adaptability, it offers:
- Robust and Versatile Structure:
- Painted steel frame with a base, top, and internal parts made of stainless steel.
- Suitable for processes like insulated glass production, grinding, beveling, drilling, tempering, printing, and painting.
- Advanced Washing System:
- Six cylindrical brushes (Ø150 mm) with special bristles for deep cleaning, including delicate glasses like Low-E.
- Three water recycling tanks with pumps and filters to reduce water consumption and operational costs.
- Washing phases with specialized jets and nozzles for effective dirt removal.
- Professional Drying:

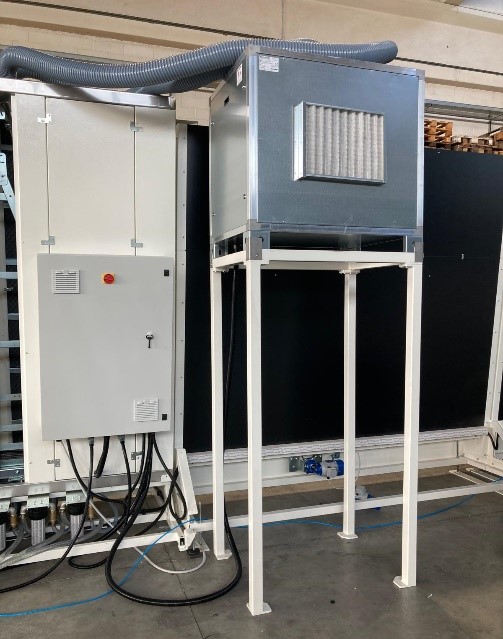

- Angled air blades powered by a high-pressure fan, insulated to minimize noise.
- Complete Automation:
- Automatic detection of glass thickness with adjustment of brushes, conveyors, and blowers.
- Capable of washing glass with thicknesses ranging from 3 to 25 mm, with electromechanical opening adjustable manually or automatically.
- Energy Efficiency and Maintenance:
- Reduced electricity and water consumption through optimized systems.
- Components positioned at the top to prevent contact with water and moisture, enhancing durability.
- Ease of Use and Safety:
- Controlled via PLC with an intuitive touchscreen display.
- Low-voltage controls and protections compliant with European standards.
- CE certification ensures safety and quality.
Available Options:
- Operational Optimization:
- Automatic glass thickness measurement.
- LED lighting.
- Scanners for quality control.
- Structure and Customization:
- Fully stainless-steel construction.
- Addition of horizontal, foldable, angular, or auxiliary supports to suit various production lines.
- Efficiency and Productivity:
- Additional drive motor for faster glass transfer.
- Reverse osmosis demineralizer for purified water.
- Horizontal rollers to improve operational flow.

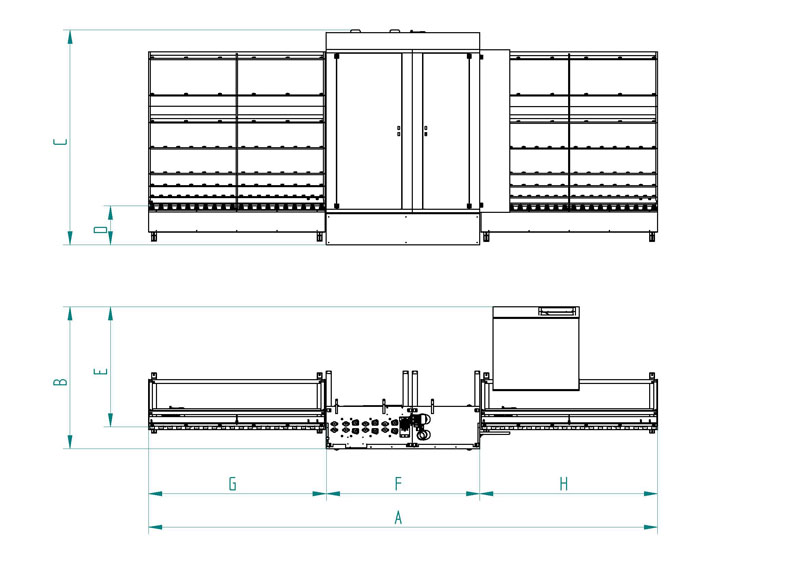

Technical Data
Technical Characteristics
Gallery
Video
