Full description

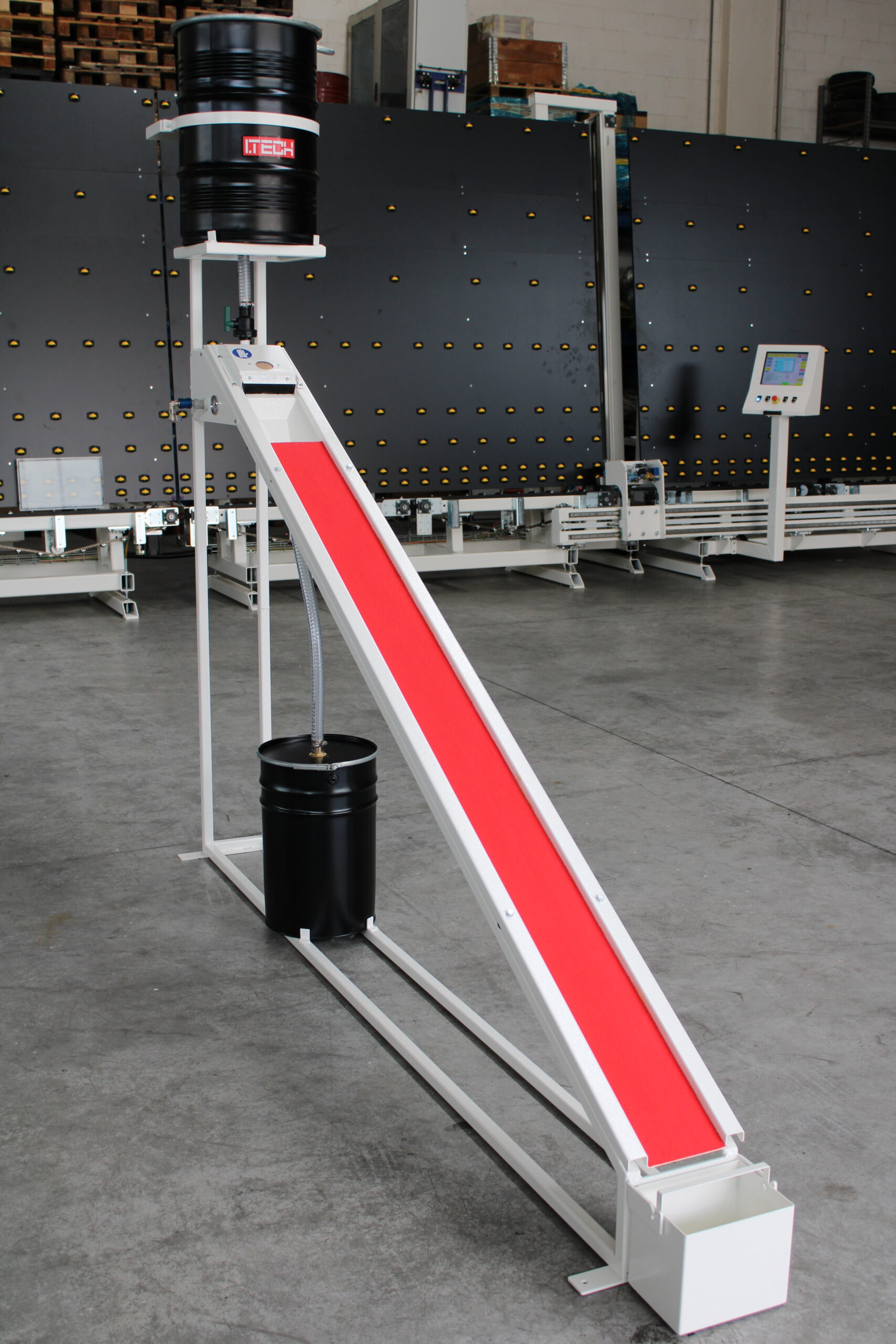

The IT117 Manual Desiccant Loader is an indispensable tool for glassworks, combining operational simplicity with high performance. Below are its key features:
- Process Efficiency:
- Precise insertion of desiccant material to improve thermal insulation and reduce condensation.
- Enhanced acoustic insulation and structural resistance of the insulated glass unit.
- Structure and Functionality:

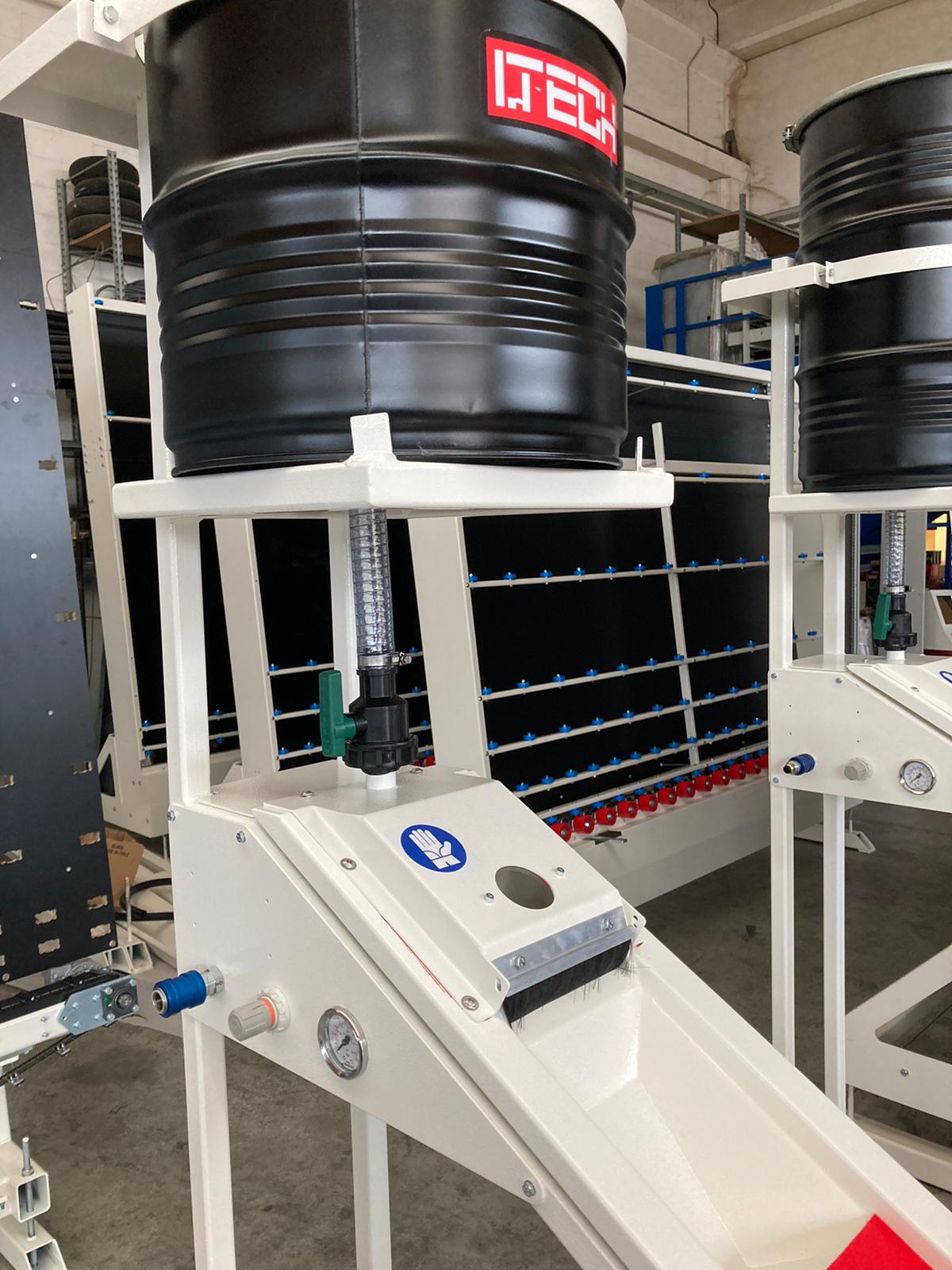

- 60-liter upper container, strategically positioned for easy filling operations.
- Vibrating system ensures controlled flow of desiccant into spacers up to 2600 mm in length.
- Design for Desiccant Preservation:
- Airtight tank with lid to protect the hydrophilic properties of the desiccant.
- Optional integrated heating element to maintain the optimal performance of the desiccant.

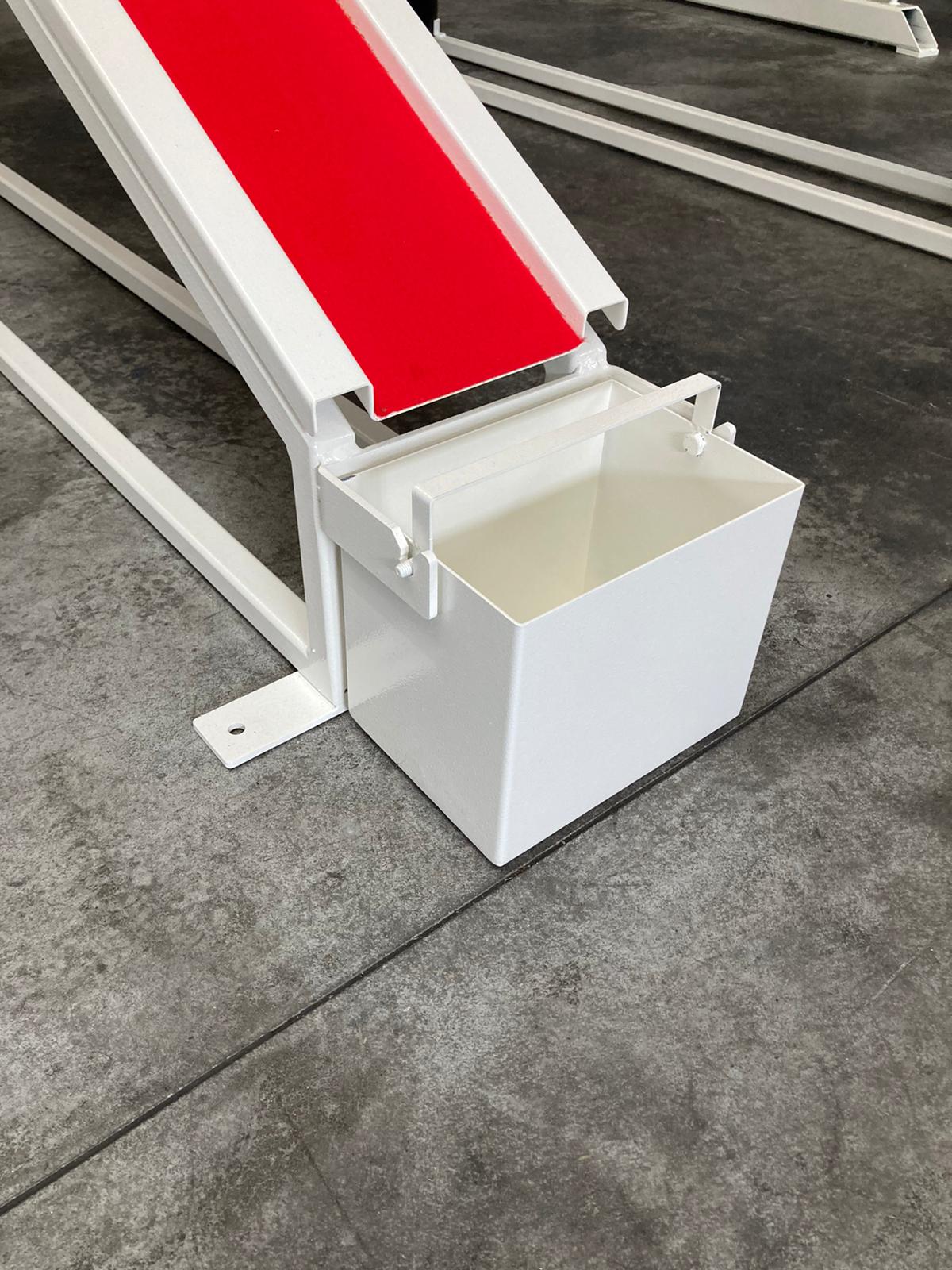

- Double brush strip at the outlet for smoother spacer insertion and minimal material loss.
- Operational Safety and Alternatives:
- Requires a ladder to access the upper tank.
- Alternative: The IT118 Desiccant Vacuum Loader, which vacuums desiccant from a floor container and transfers it to the upper tank without the need for a ladder, improving operator safety.
- Efficiency and Waste Reduction:
- System designed to optimize the desiccant loading process, minimizing waste during operation.
Technical Data
Technical Characteristics
