Our Products - FOLDING RACK

MODULAR CONVEYORS

FOLDING RACK

The Folding Rack is a versatile and reliable solution for transporting and rotating glass, ensuring smooth and secure transitions between vertical and horizontal positions. Designed to optimize space and improve efficiency in glassworks, this machine perfectly adapts to various production stages, ensuring stability and safety during every operation.

Full description

Technical Data

Technical Characteristics

Gallery

Video

Full description

Technical Data

Technical Characteristics

Gallery

Video

ASK FOR INFORMATION

Are you interested in this product?

Fill out the form on the side, we will reply as soon as possible, or contact us by phone.

Minimum Glass Size:	L380 mm x H180 mm
Maximum Glass Dimensions:	L3000 mm x H2500 mm (maggiore su richiesta) “JUMBO” L6000 mm x H2500 mm
Maximum Load Horizontal Plane:	984mm +/-60mm
Maximum Load Vertical Plane:	650mm +/-60mm
Glass thicknesses:	min 3 mm – max 80 mm
Transport Speed:	up to 40 mt/min
Horizontal dimension:	L3000 mm x 2850 mm x H1074 mm
Vertical dimension:	L3000 mm x 1800 mm x H3110 mm
Structure:	Painted steel
Transport System:	Polyurethane rollers
Motors:	N° 1/2
Lifting System:	N°1 Self-braking system on 1/2 planetary gearbox
Sensors:	N°2/4
Power Supply:	4 Kw
Voltage:	400 V – 50Hz3Ph + Ground+ Neutral
Weight:	1000 kg

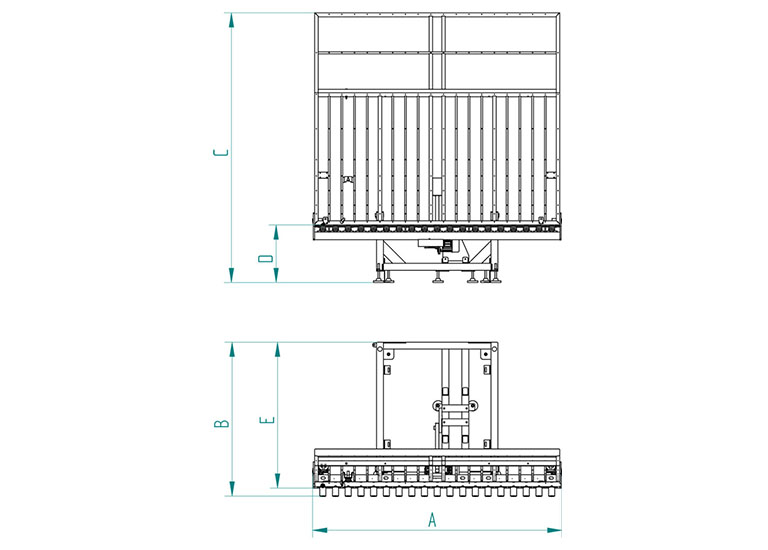

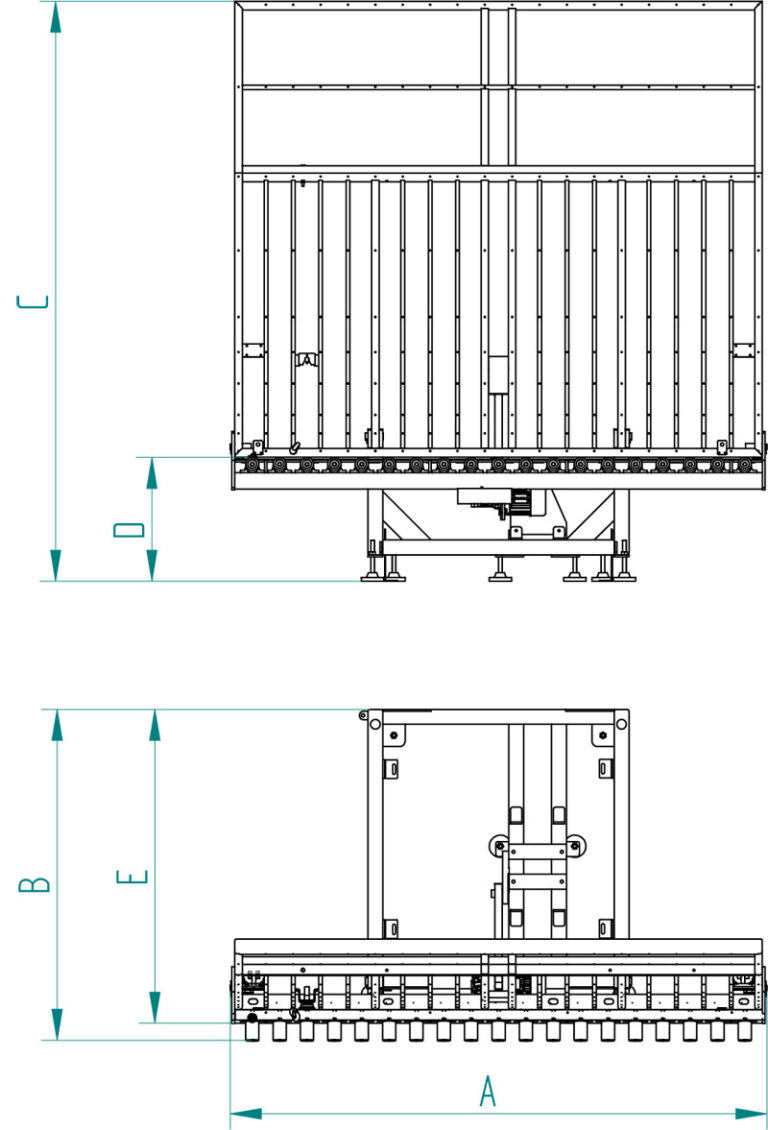

HEIGHT	A	B	C	D	E
H2000	2950	1750	2620	600	1660
H2500	2950	1750	3120	600	1660
H3210	5950	1750	3830	600	1660
